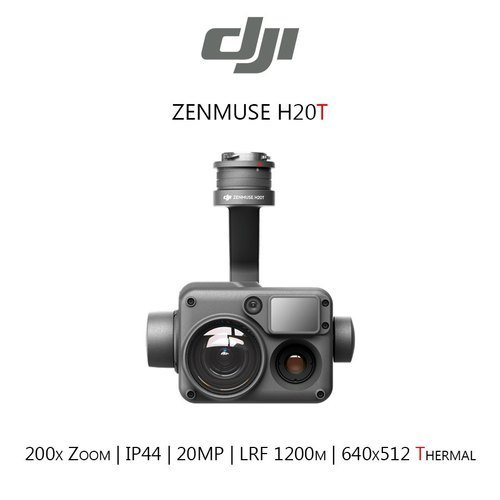

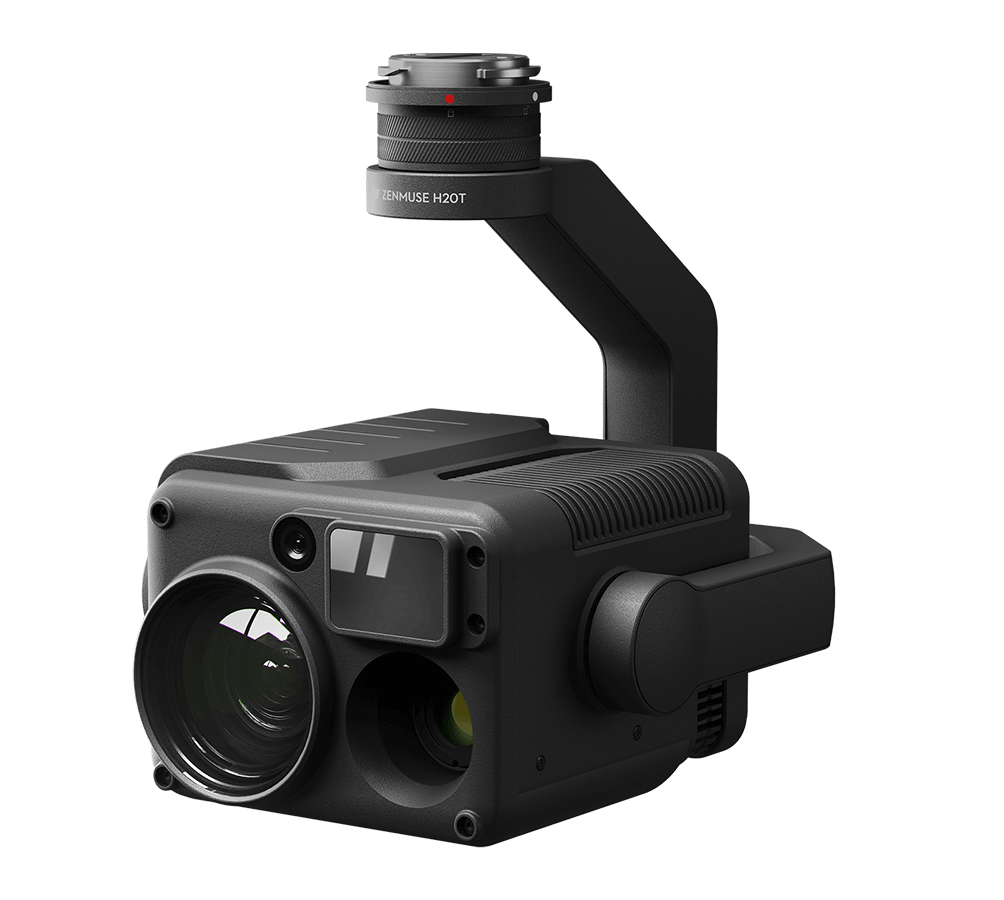

DJI Zenmuse H20T - Integrated Multi-Sensor Payload (Zoom + Thermal + Laser Rangefinder) for Industrial Drones

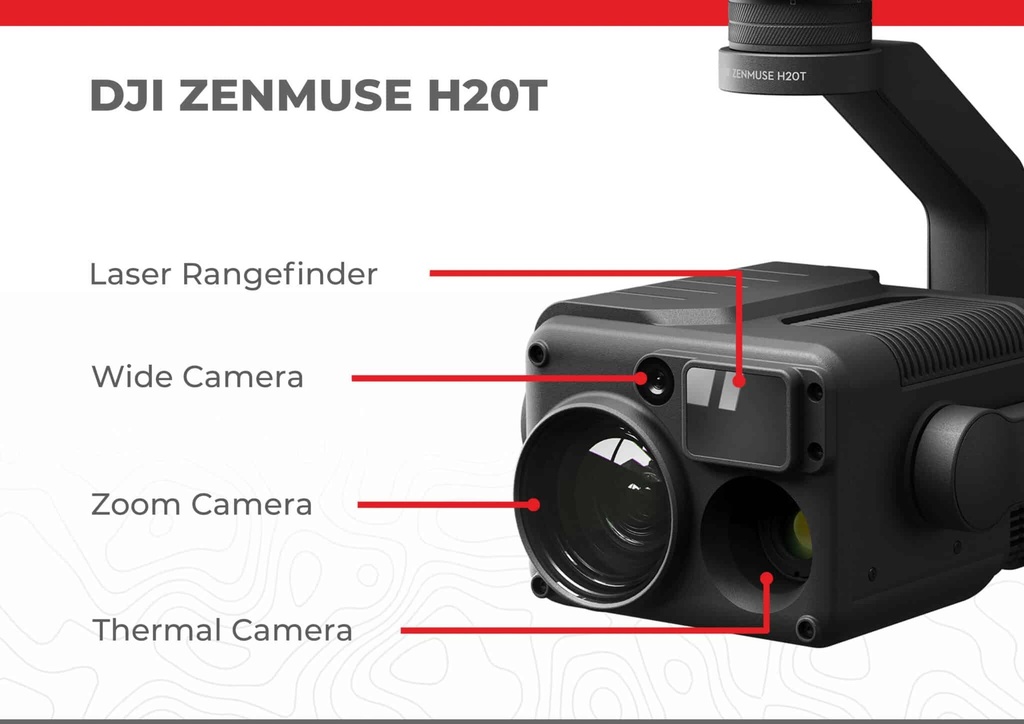

The Zenmuse H20T combines four critical sensors in one gimbal: a 20MP optical zoom camera, 12MP wide-angle camera, 640×512 radiometric thermal imager, and a 1200m laser rangefinder. Designed for Matrice 300/350 RTK drones, it delivers real-time intelligence for public safety, infrastructure inspection, and geological surveys. Features AI-powered spot tracking, multi-sensor fusion, and centimeter-accurate targeting.
Key Specifications
Optical Zoom
• Sensor: 1/1.7" CMOS, 20MP
• Zoom: 23× optical (focal length: 4.3-94.6 mm), 200× max hybrid zoom
• Video: 1080p/30fps
Wide-Angle
• Sensor: 1/2.3" CMOS, 12MP
• FOV: 82.9° (equivalent to 24 mm)
• Video: 4K/30fps
Thermal Imager
• Resolution: 640×512 px (radiometric)
• Frame Rate: 30 Hz
• Accuracy: ±2°C or ±2%
• FOV: 40.6°×32.5° (6.8 mm lens)
Laser Rangefinder
• Range: 3-1200 m
• Accuracy: ±0.2 m (within 300 m)
• Class: Eye-safe Class 1 (IEC 60825-1)
AI Features
• Spotlight Pro™: Auto-tracks moving subjects
• Smart Track 3.0: Follows targets at 60 km/h
• PinPoint: Coordinates mapping across sensors
Physical
• Weight: 920 g
• Dimensions: 145×118×126 mm
• Gimbal: 3-axis stabilization (±0.05° accuracy)
Environmental
• Operating Temp.: -20°C to 50°C
• IP Rating: IP44 (splash/dust resistant)
Compatibility
• Drones: Matrice 300 RTK, Matrice 350 RTK
• Software: DJI Pilot 2, DJI Terra™, FLIR Tools
Key Advantages
Multi-Mission: Single flight captures visible, thermal, and geospatial data.
Precision Targeting: Laser + GPS sync achieves <10 cm geo-referencing accuracy.

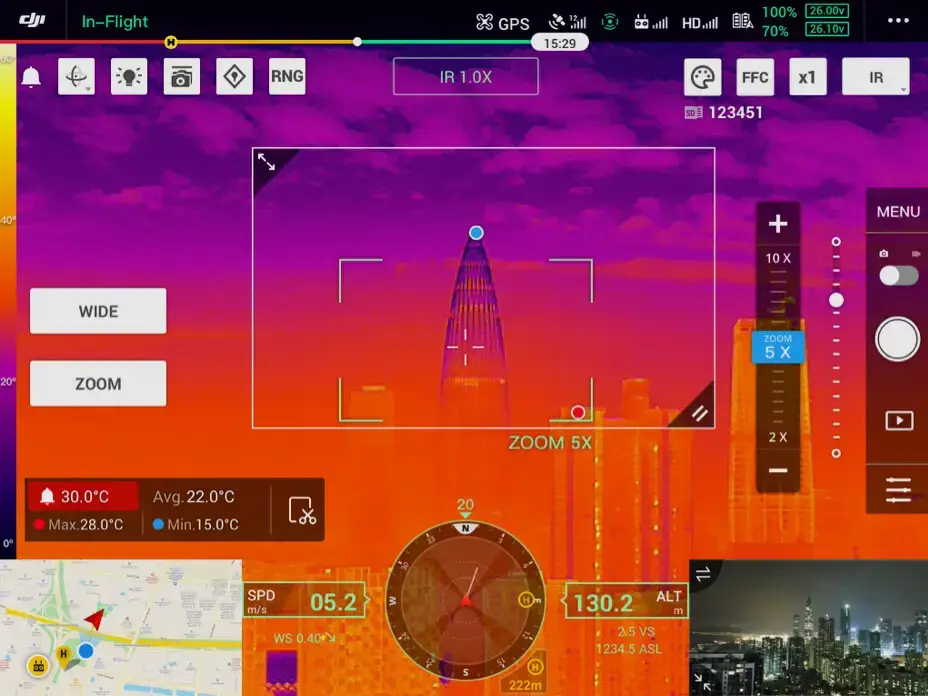

Radiometric Analysis: Measures surface temperatures pixel-by-pixel (saves as .csv).

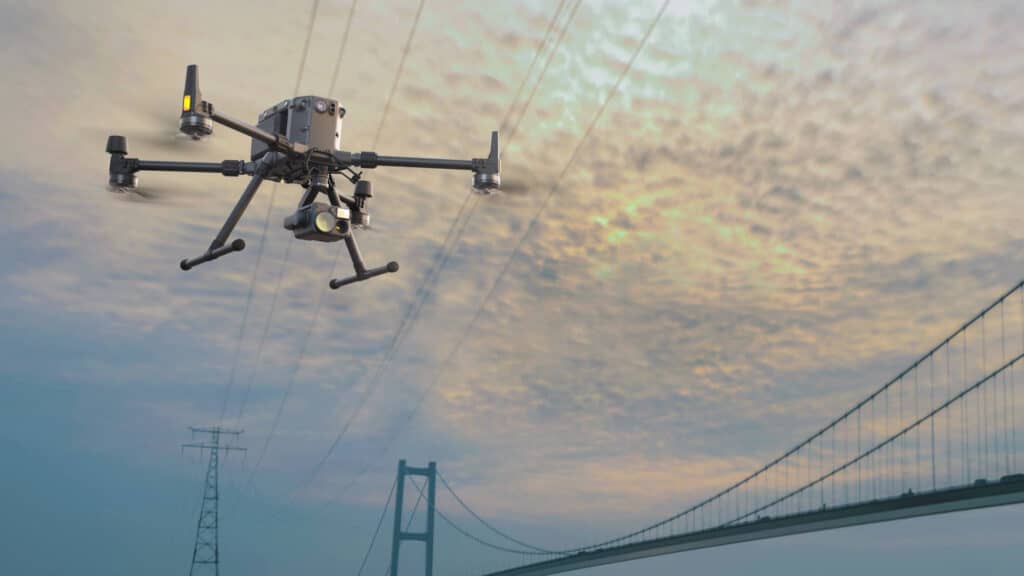

Efficiency: 100x faster than manual inspections (e.g., power line surveys).
Note: Ideal for:
Geological fault detection (thermal)
Mineral identification (optical zoom)
Volumetric surveys (laser + RTK)
Night search/rescue operations
Included Accessories
H20T Payload
Lens cleaning kit
MicroSD card (32GB)
Quick-release adapter
Certifications: CE, FCC, IP44, EN 62368-1
100% original guarantee
Return within 30days
Free delivery on all orders
| Brand | DJI |
